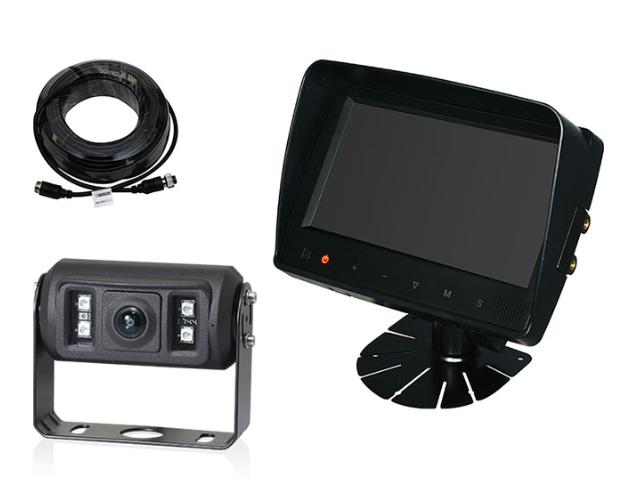

Viewtech 7″ RV Reversing Kit

$800.00

The Viewtech reversing system is a fit for purpose, hard wearing, wide angle camera and monitor system for RV motorhomes and buses. It is designed for durability and is rated for 24/7 operation, if required.

High Definition
Our new monitor features a higher pixel resolution and the included camera is now an HD format of 1080P. This enables higher sharpness and detail, which in turn enables safer blindspot viewing. The higher definition image enables this system to offer the best possible safety solution, as humans and obstacles can be more easily seen.

Heavy Duty & Long Lasting
The Viewtech 7″ Monitor is a high quality, shock resistant digital monitor built for conditions associated with vehicles. It comes with sturdy mounts and brackets and all connections are made via a wiring loom, which can be fully hidden. The heavy duty camera is also built to last. Made from cast aluminum it can handle the odd knock or two. It features a built-in heater to prolong its life, keeping moisture out and meaning you will never have to put up with a foggy image.

Vibration tested to ISP 167503 Max 6.3G.

Connections to cameras are all made via waterproof 4-pin screw type connections and the camera also comes with a rubber cable shroud and grommet for entry through an external surface.

The extra wide 180° lens provides extremely good vision – when mounted on the correct angle you will be able to see both corners of your bus/motorhome, as well as 10m further back. A built in distortion correction algorithm reduces the fisheye effect on such a wide angled lens.

Features:

High definition 1080P 180° camera with built in distortion correction
use for reversing or for watching traffic behind vehicle
IP69K rated camera
four video inputs. Three via the rear cabling bundle and one via the front jack
hi resolution digital monitor with superior brightness – 400cd/m2 brightest on the market
hi resolution colour camera with infrared night vision and audio
true day/night infrared filter for ultra clear night time imaging
automatic defrosting and demisting. (heater kicks in when temperature drops below 10 degrees)
each rear video input also has a 12V output for powering cameras / devices
each rear video input has a power sensing wire which when taken to a positive voltage will automatically select that view (door view, reversing camera etc.)
10V-32V dynamic voltage input range. Handles spikes and volt drops experienced in a 24V system
versatile mounting options for both camera and monitor
monitor button lights automatically illuminate in the dark
